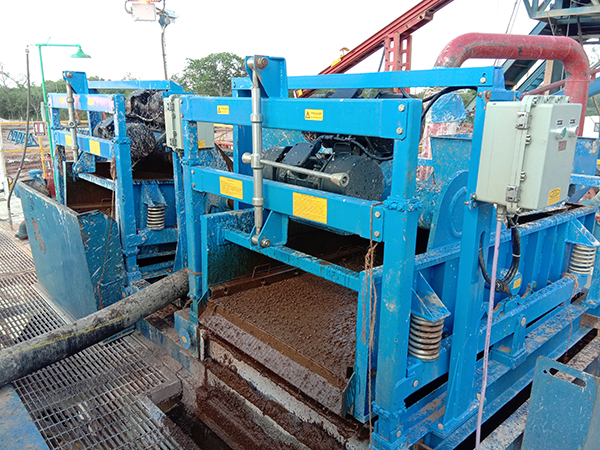

KOSUN liner shale shaker is driven by a double vibration motor. When two vibration motors are synchronous and counter-rotating, the exciting force generated by the eccentric block cancels each other in the direction parallel to the motor axis and overlapped as a resultant force in the direction perpendicular to the motor axis. Therefore, the motion trajectory of the screen machine is a straight line.Its two motor shafts have an inclination relative to the screen surface. Under the combined force of excitation force and the material's gravity force, the material will be thrown up and jump forward to make a straight movement on the screen surface, so as to achieve the purpose of screening and classifying the material.Can be used in the pipeline to achieve automation.It has the characteristics of low energy consumption, high efficiency, simple structure, easy maintenance and completely closed structure without dust overflow.The highest mesh number is 325 mesh, which can screen out 7 materials with different particle size.

Kosun linear motion shale shaker uses the vibration motor to excite the vibration type, causes the material to be tossed on the screen net, at the same time makes the straight line movement in front, the material enters the material inlet of the screening machine evenly from the feeding machine.The upper and lower sieves of various specifications are produced through a multilayer screen,from respective outlet eduction.With low energy consumption, high output, simple structure, easy maintenance, closed structure, no dust overflow, automatic discharge, more suitable for assembly line operation.
