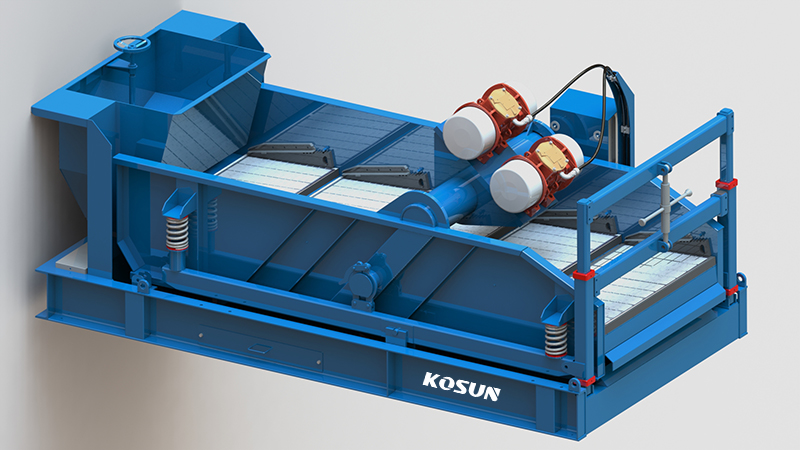

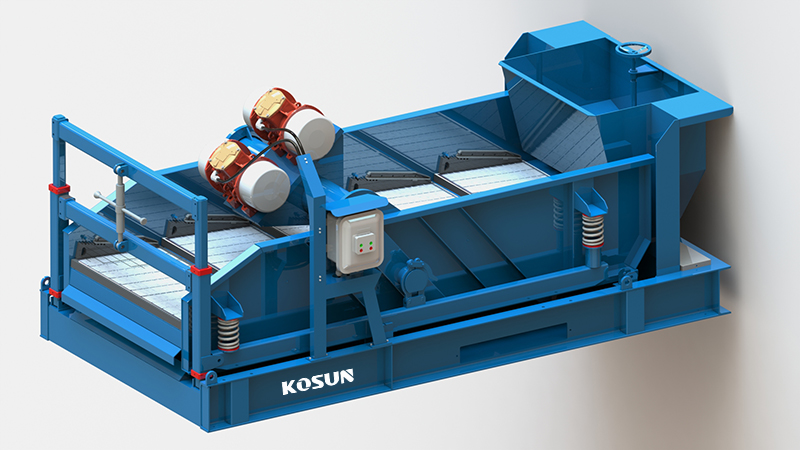

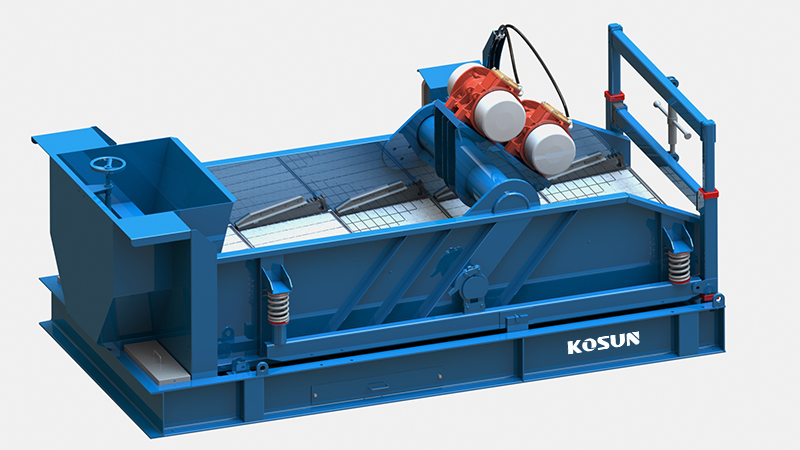

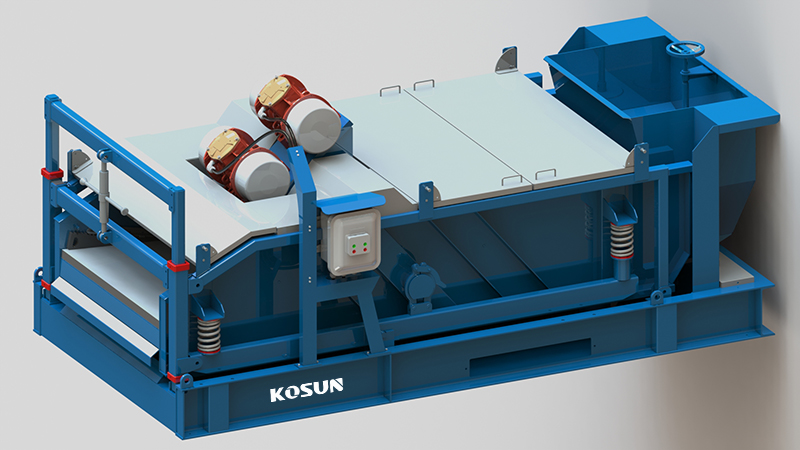

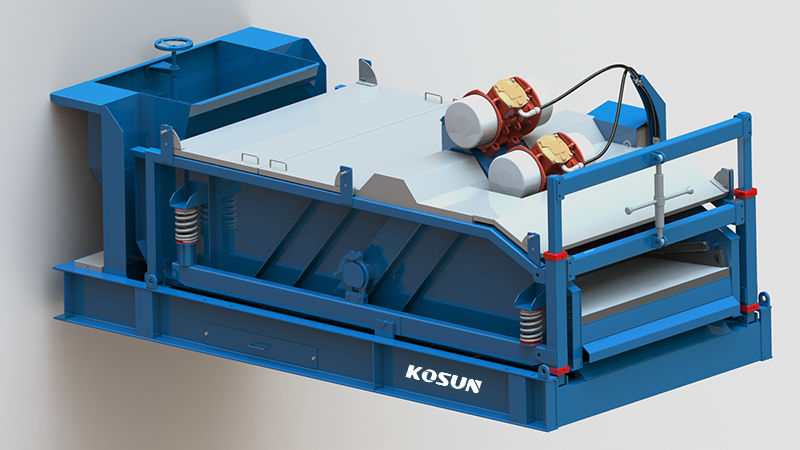

Xi 'an KOSUN is a professional domestic manufacturer of drilling fluid vibrating screens. The LS585 type shale shaker  it produces is a first-level solid control equipment for oil drilling, mainly composed of a base, a screen box, a vibrating spring, a vibrating motor, and a feed logging tank. It is applicable to linear motion vibrating screens for deep Wells, ultra-deep Wells and large-displacement horizontal Wells. The net area of the entire machine's screen surface is 3.4 square meters. A single unit can simultaneously install 5 API 40-200 mesh screens. Under an adjustable excitation force ranging from 6.5G to 7.5G, it achieves the triple indicators of large displacement, low slurry running, and high dryness.

Technical parameters

Features of LS585 Vibrating screen equipment

1. It uses a frame screen and a mechanical ratchet mechanism, making it convenient to replace the screen and requiring no maintenance on a daily basis.

2. Five screens are configured, significantly increasing the processing capacity.

3. High-efficiency screening: Driven by dual vibration motors, it features strong excitation force, high screening efficiency and large processing capacity.

4. It can quickly press the screen, facilitating quick disassembly and replacement in a short time.

5. The connecting bolts of the vibrating motor adopt professional anti-loosening technology, ensuring reliable connection in vibrating environments.

6. Comprehensive anti-splashing measures minimize mud splashing and make the treatment environment cleaner.

7. Adopt finite element analysis to optimize product design.

Application scenarios of LS585 Shale Shaker

It can be used for screening treatment in high-pressure and high-solid-content working conditions such as onshore/offshore deep Wells, shale gas horizontal Wells, and geothermal Wells, and can meet the requirements of large-scale mud processing systems

It is applicable to the treatment of various drilling fluid systems such as oil-based, water-based and synthetic ones

It is also applicable to the mud treatment of trenchless HDD, water Wells and mining drilling, and can meet the requirements of compact separation and purification systems with small processing volumes.
