1.INTRODUCTION OF KOSUN SLURRY TREATMENT PLANT

Slurry Treatment Plant developed by KOSUN is the most advanced technological products in the world, which can be widely used in urban rail transit construction, water conservancy and hydropower construction and municipal engineering. In the next 20 years, the construction of domestic infrastructure will be the key fieleds invested by the State. KOSUN Slurry Treatment Plant can meet the environmental requirements on urban construction and processing. The market demand of environ mental Slurry Treatment Plant will be increasing.

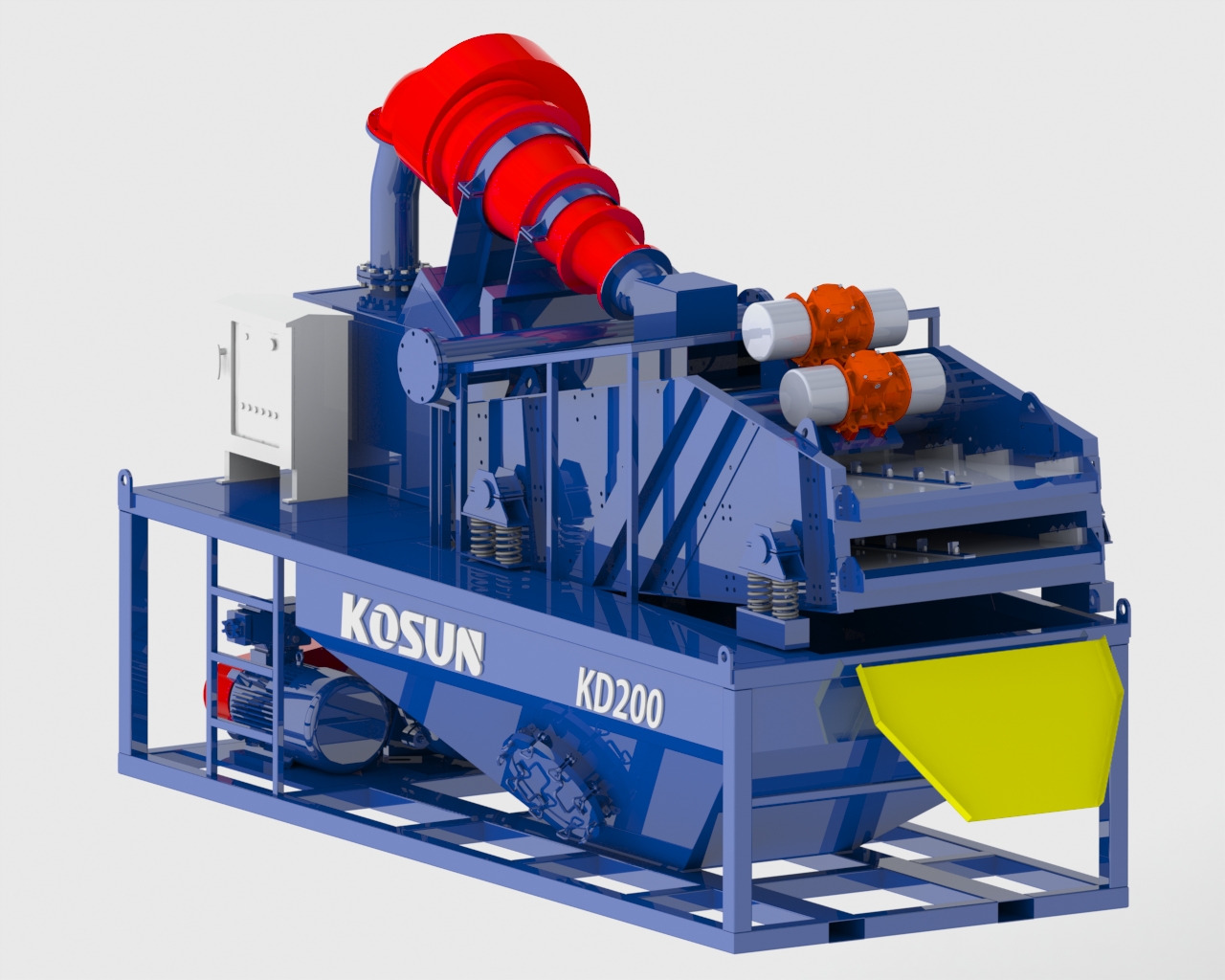

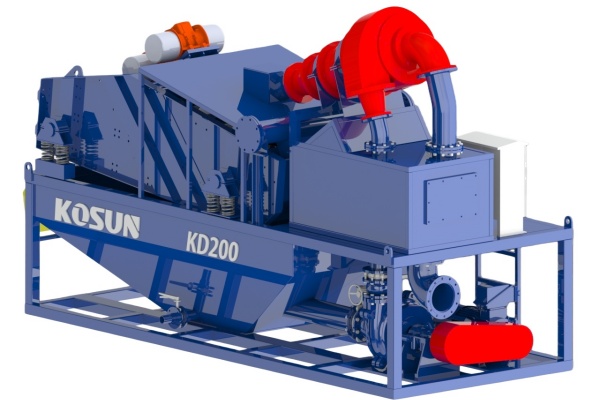

KD series Slurry Treatment Plant is a kind of professional mud treatment equipment developed by KOSUN, which is suitable for purifying slurry in the mud-water balance shield, diaphragm wall, pile foundation and other projects in the process of circulation drilling. It is used to control the mud performance, enhance the quality and efficiency of hole making, support and ensure the safe and smooth operation of roadheading equipment, and improve the recycling of the mud. KOSUN Slurry Treatment Plant can save construction costs, reduce mud emissions and reduce environmental pollution. It is an economical, efficient and environment-friendly necessary construction equipment.

2.STRUCTURE AND FUNCTION OF KD SERIES SLURRY TREATMENT PLANT

KD series Slurry Treatment Plant mainly consists of scalping shaker module, desanding module and desilting module. As a pre-screener, the scalping shaker can remove coarse particles from mud. The desanding module is equipped with desander (primary cyclones) and fine-mesh shaker and mainly removes granulated sand. The desilting module is equipped with desilter (secondary cyclones) and can conduct a fine separation selectively according to the field needs of customers. Mud closed-loop circulating purification mode and lower water content in slags help reduce the environmental pollution. Wear parts of the system are of anti-corrosion and wear-resistance, long service life and low failure rate, and the system can be suitable for various severe working conditions.>>Send an Enquiry sales@adkosun.com<<

SPECIFICATION FOR KD SERIES SLURRY SEPARATION PLANT
Model	KD-50	KD-100	KD-200	KD-500	KDS-500
Handing Capacity	50m3/h	100m3/h	200m3/h	500m3/h	500m3/h
Separation Size	40μm	45μm	60μm	60μm	20-60μm
Total Installed Power	21.98KW	25.44KW	48.44KW	192.44KW	288.04KW
Total Weight	2.1t	2.8t	2.8t	18t	32t
Overall Dimensions	3m*1.8m*2.5m	3.5m*1.6*2.5m	3.5m*1.6m*2.5m	6.9m*2.2m*6.0m	8.1m*8.5m*8.2m

3.OVERALL ADVANTAGES OF KD SERIES SLURRY TREATMENT PLANT

(1) Simple and useful treatment process, as well as convenient installation, operation and maintenance;

(2) Modular and integrated design, transportation and installation subject to standard container size, foldable operating platform, compact structure, small footprint and flexible field use;

(3) Adjustable G-force of shale shaker, screen panel angle and mesh size, strong overall system adaptability and easier treatment of materials from various formations;

(4) Meet separation requirements on various materials and customize process as per the cut point of D 50 ; meet the requirements on different handling capacities, 100~3000m³/h;

(5) Meet various power specifications as per construction needs, and even generator set can be used for operation;

(6) The whole system is skid-mounted integrated system and can be also changed into vehicle-mounted mobile treatment units.>>Send an Enquiry sales@adkosun.com<<

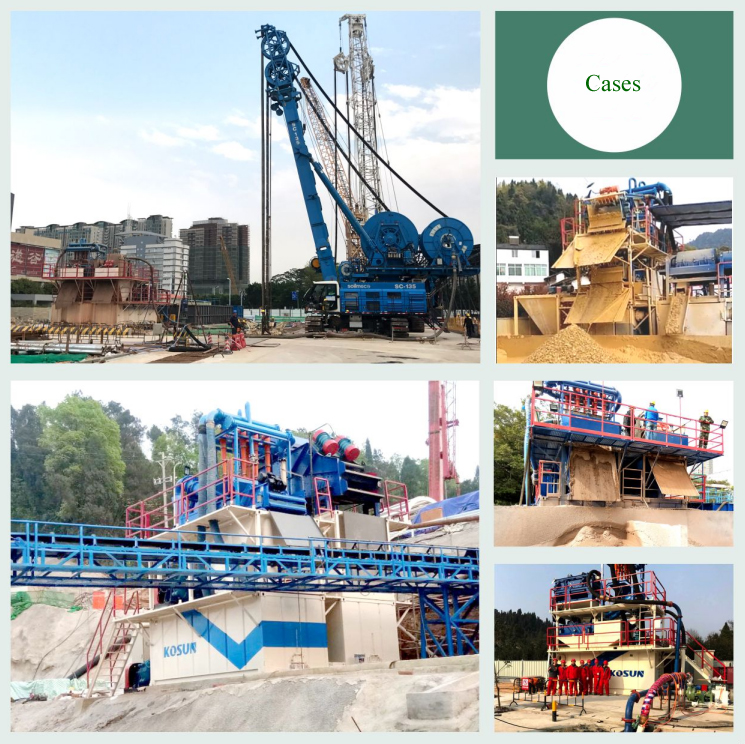

4.KOSUN SLURRY TREATMENT PLANT SITE CASES

Tag: Slurry Treatment Plant, Separation Plant, Desanding Plant for Micro-tunneling, Pipe-jacking,rotary drilling rig, bored pilling Construction, Diaphragm Wall Construction, TBM And Bored Pile.
