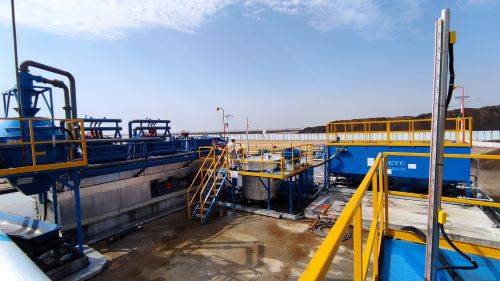

Managing gas-invaded fluids requires an advanced Oily Sludge Treatment System to satisfy tightening environmental compliance audits. Within global oilfield waste management operations, implementing a heavy-duty Oil Sludge Thermal Washing and Disposal System eliminates persistent project bottlenecks. Consequently, operators prioritize automated volume reduction and resource recovery to manage these complicated fluids. Among various specialized configurations, hydro-thermal washing methods deliver exceptional multi-phase separation performance. This dependable approach successfully minimizes hazardous solid output while recovering valuable crude oil assets.
Core Processing Phases of the Oily Sludge Treatment System

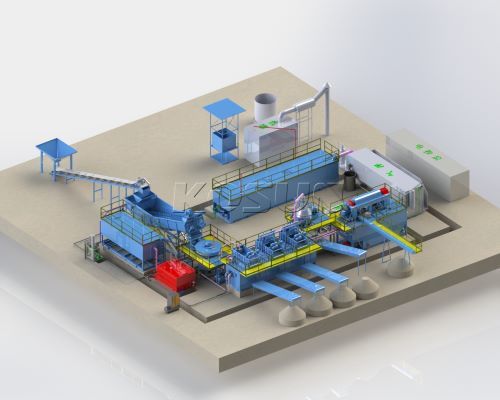

Breaking the tough oil-water-solid chemical bonds requires a synergy of thermodynamics and mechanical shear forces. To help field engineers evaluate processing efficiency, this structured workflow outlines a standard industrial closed-loop blueprint.
Phase 1: High-Shear Washing and Preliminary Gravity Separation
The raw material first enters the specialized screw washing unit. At this stage, the system injects pressurized hot water and precise chemical demulsifiers. The strong mechanical action of the screw blades strips the viscous oil layer from solid particles.
Next, the blended fluid enters a dedicated skim tank. Because oil, water, and solids have different densities, the crude oil floats to the top rapidly. Skimming devices collect this surface oil and route it directly into waste oil storage tanks. Meanwhile, pumps transfer the remaining middle and bottom layers to a high-speed centrifuge for fine physical separation.
Phase 2: Multi-Stage Dewatering via the Oily Sludge Treatment System
Besides fluid treatment, handling the solid phase requires equally strict mechanical processing to achieve substantial volume reduction:
- Vibrating Screen Shaking: The coarse solids from the screw washer and the bottom sediments from the skim tank flow together onto a high-frequency vibrating screen for initial dewatering.
- Three-Phase Centrifugation: The screened slurry then enters the three-phase centrifuge. Under an intense high-G force field, the machine separates hard solids, oil, and water cleanly. The dry solid cakes discharge directly into transport trucks, securing maximum volume reduction.
Fluid Purification and Water Circularity in Sludge Cleaning
The liquid phase from the centrifuge consists mostly of water and trace residual oils. This fluid routes directly to a dissolved air flotation (DAF) system to finalize the water reclamation process.
The DAF unit generates dense micro-bubbles to lift micro-suspended solids and free grease to the surface for automated skimming. This final purification step completely restores water quality parameters. Therefore, operators can route the clean water back to the front-end heating system for total recycling. This closed-loop design eliminates any wastewater discharge risks.
Control Systems and Custom Configurations
To guarantee long-term stability, a central control cabinet stands beside the process footprint. This enclosure houses cooling loops to regulate internal component temperatures, ensuring safe all-weather operations.
Because global mud formulas vary and ambient weather shifts, these cleaning parameters adapt flexibly to changing environments. Process engineers adjust equipment proportions and power scales based on specific material viscosity, oil content, and throughput requirements. This customized approach ensures optimal volume reduction while minimizing capital expenditures and operating costs.
