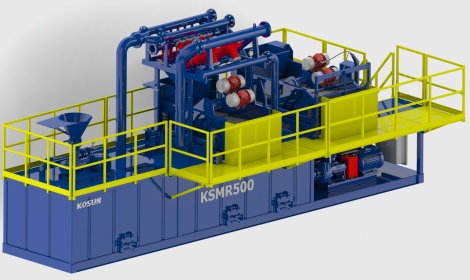

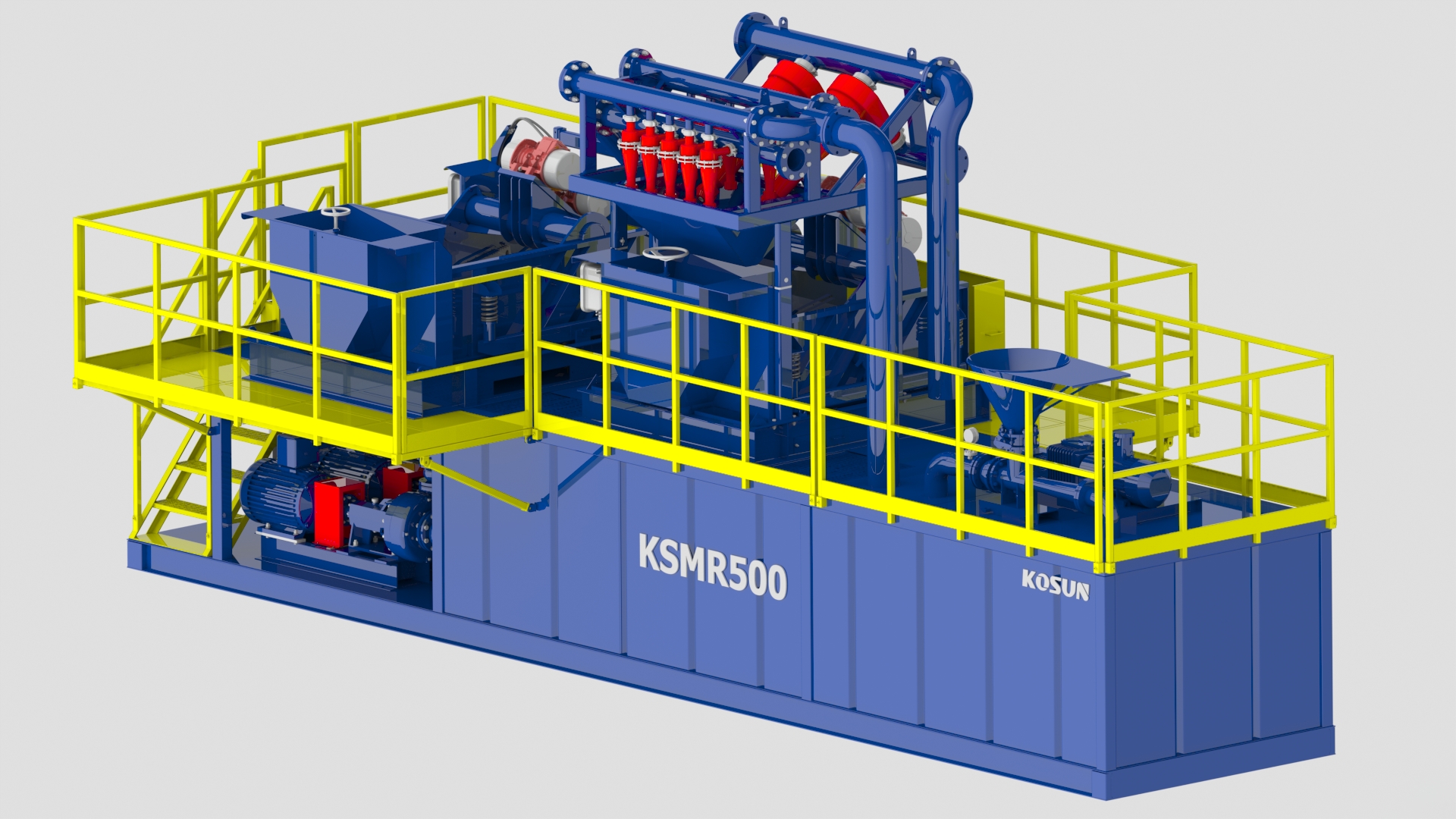

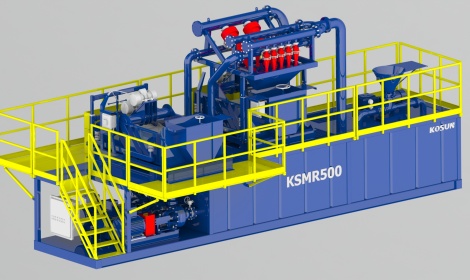

KSMR-500 HDD Mud Circulation System
Mud Circulating System for Trenchless Drilling Construction-KOSUN

KSMR-500 HDD Mud Circulation System

KOSUN KSMR-500 HDD Mud Circulation System is mainly used in HDD, coalbed methane exploitation and other construction projects with requirements on capacities below 500GPM....

PDF Download

Contact Us

KOSUN KSMR-500 HDD Mud Circulation System is mainly used in HDD, coalbed methane exploitation and other construction projects with requirements on capacities below 500GPM.>>Send an Enquiry sales@adkosun.com<<


Parameters of KOSUN KSMR-500 HDD Mud Circulation System:

System Capacity: 500GPM (120m³/h)

Particle Size after Treatment: 15~44μm

Total Screen Area of Shale Shaker: 2m2

Total Screen Area of Underflow Shaker: 2m2

Processing Stage: three stages

Total System Power: 150kW

Total System Volume: 15m³

External Dimensions of the System: 10000×2360×4228mm



KSMR-500 HDD Mud Circulation System is applied to construction projects with higher mud capacities. Its purification process is divided into three stages: shale shaker for the first stage, desander and desilter respectively for the second and third stages. Both desander and desilter are equipped with underflow shakers that can carry out a further treatment to solids discharged by the upper equipment. By mud preparation devices, add necessary mud materials into purified mud and stir them evenly to prepare mud with qualified properties for recycling, which can greatly reduce construction costs and effectively protect the environment.>>Send an Enquiry sales@adkosun.com<<
