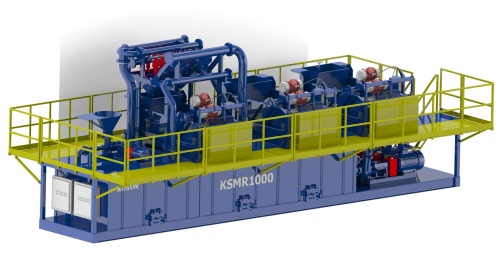

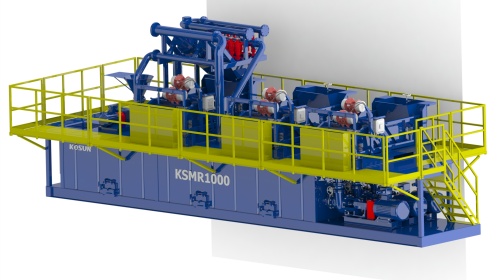

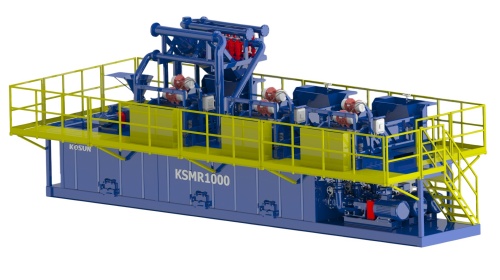

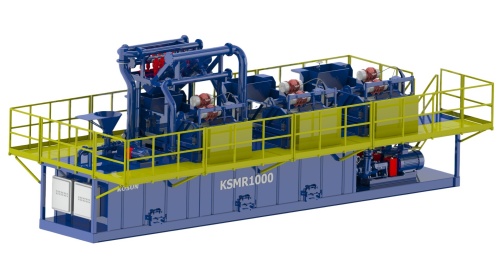

The KOSUN KSMR-1000 mud recycling system is a high-efficiency, large-scale integrated solids control and mud circulation equipment, primarily designed for engineering projects with high processing volume demands, such as large-scale Horizontal Directional Drilling (HDD), diaphragm wall construction, or piling projects. This mud recycling system aims to achieve efficient purification of drilling fluid and circulation reuse through advanced four-stage separation technology.

Parameters of KOSUN KSMR-1000 HDD Mud Recycling System:

Advantages of the KSMR-1000 Mud Recycling System

This mud recycling system uses physical separation methods to separate cuttings and solid particles from the mud generated during drilling, ensuring stable mud performance and achieving the goal of environmental emission reduction.

Strong Processing Capacity: Features a large processing volume of 240 m³/h (1000 GPM), meeting the demands of large projects.

High Separation Accuracy: Capable of achieving a final separation particle size down to 20 microns, ensuring mud purity.

Total Power: The system's total power is 184 kW.

Three-Stage Solids Control Process:

The mud recycling system uses a combination of shale shakers, desander, and desilter to form a complete solid-liquid separation process, which is its key advantage.

Coarse Screening (Stage 1): Uses two LS584 single-layer shale shakers to remove large particles (> 1.5mm).

Desanding (Stage 2): Uses 2 x 12" desanding hydrocyclones to treat sand-sized particles (74μm to 1.5mm).

Desilting (Stage 3): Uses 12 x 4" desilting hydrocyclones to treat silt-sized particles (20μm to 74μm).

Mud Preparation (Conditioning): Equipped with a mixing pump and mixing hopper to add chemical agents or new materials, ensuring the mud is homogeneous and stable.

Application Scenarios for the KSMR-1000 Mud Recycling System

This KSMR-1000 mud recycling system is suitable for civil engineering and trenchless projects requiring large-scale mud treatment capacity:

Large-scale Horizontal Directional Drilling (HDD) projects.

Diaphragm wall construction and deep foundation pit support projects.

Piling projects for large bridges and high-rise buildings.

Using this KSMR-1000 mud recycling system helps reduce waste disposal costs, saves water resources and mud materials, and improves construction efficiency and environmental benefits.
