What are Structural Composition and Overall Advantages of KOSUN KD Series Slurry Separation System?

Pub Date:Sep 11, 2022    |    Views:354    |

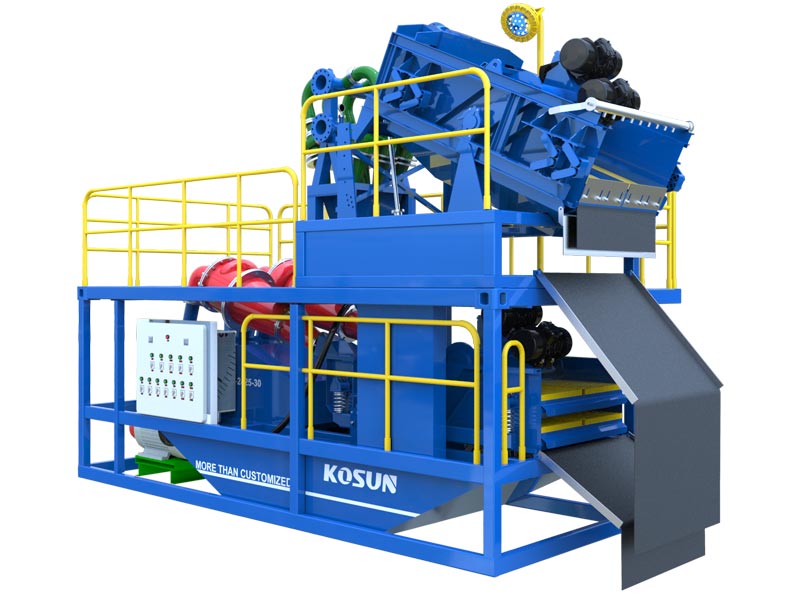

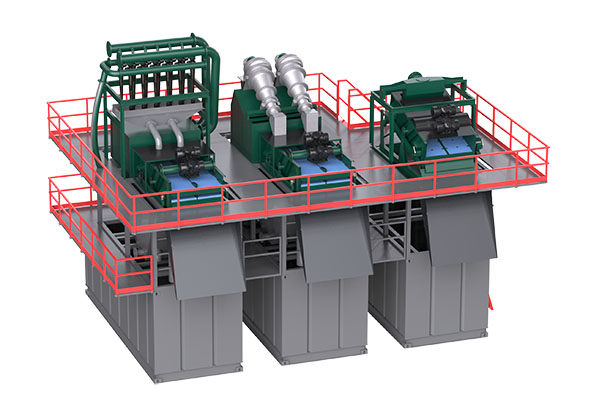

KOSUN KD series slurry separation system mainly consists of scalping shaker module, desanding module and desilting module. As a pre-screener, the scalping shaker can remove coarse particles from mud. The desanding module is equipped with desander (primary cyclones) and fine-mesh shaker and mainly removes granulated sand. The desilting module is equipped with desilter (secondary cyclones) and can conduct a fine separation selectively according to the field needs of customers.
Mud closed-loop circulating purification mode and lower water content in slags help reduce the environmental pollution. Equipment parts of the system are of anti-corrosion and wear-resistance, long service life and low failure rate, and the system can be suitable for various severe working conditions.


  • Simple and useful treatment process, as well as convenient installation, operation and maintenance;

  • Modular and integrated design, transportation and installation subject to standard container size, foldable operating platform, compact structure, small footprint and flexible field use;

  • Adjustable G-force of shale shaker, screen panel angle and mesh size, strong overall system adaptability and easier treatment of materials from various formations;

  • Meet separation requirements on various materials and customize process as per the cut point of D50; meet the requirements on different handling capacities, 100~3000m3/h;

  • Meet various power specifications as per construction needs, and even generator set can be used for operation;

  • The whole system is skid-mounted integrated system and can be also changed into vehicle-mounted mobile treatment unit.
