As global environmental requirements become increasingly stringent, the drilling industry is undergoing a profound transformation. "Zero discharge" or "closed-loop" mud systems have evolved from a cutting-edge concept to an industry mainstream. Among these, the Water-Based Mud (WBM) zero-discharge system, with its outstanding environmental performance and significant economic benefits, has become the preferred choice for many conventional drilling projects. This article will provide a detailed analysis of the core advantages of the WBM Drilling Cuttings Treatment System and explain how this technology can achieve more economical, efficient, and greener drilling operations.

What is a WBM Drilling Cuttings Treatment System（ Water-Based Mud Zero Discharge System）?

A WBM Drilling Cuttings Treatment System is an environmentally friendly drilling waste management system used at drilling sites. Its core philosophy is to achieve the reduction, harmlessness, and resource recovery of drilling waste (including water-based mud and drill cuttings), fundamentally eliminating pollution of the environment by waste materials.

Simply put, the system uses a series of equipment and processes to conduct solid-liquid separation of the waste mud and cuttings generated during drilling. It recovers the reusable liquid portion (water and mud components) and treats the solid portion through drying and solidification, ultimately achieving a closed-loop operation for the entire drilling process, avoiding the traditional practice of directly discharging waste into mud pits or onto the ground surface. Compared to complex oil-based mud treatment systems, WBM zero-discharge systems have the inherent advantage of simpler treatment processes and higher cost-effectiveness.

The Working Principle of the WBM Drilling Cuttings Treatment System

The core working principle of the WBM zero-discharge system is efficient solid-liquid separation and resource recycling. The treatment process is primarily divided into the following stages:

Collection and Conveyance: The drilling fluid passes through the drilling rig's circulation system into the shale shakers to separate large solid particles. The remaining waste mud and cuttings are then conveyed to the system for further processing using equipment such as screw conveyors.

Solid-Liquid Separation: Under the action of a dewatering shaker, the system performs initial solid-liquid separation of the materials. The dewatering shaker uses vibration and screens to further remove liquid from the cuttings.

Chemical Treatment: Chemical agents are used in a mixing/shearing tank for chemical treatment and stirring. Agitation devices ensure thorough mixing to enhance the solid-liquid separation effect.

Deep Dewatering (Filtration Press): The chemically treated mud is pumped into a filter press. The filter press uses mechanical pressure to further dewater the mixture, forming a "mud cake" with very low moisture content.

Circulation and Utilization: The treated liquid (clean water or reusable mud) is collected in a recovery tank and can be reused to formulate new mud or for construction water, enabling efficient resource recycling. The dried "mud cake" cuttings can be used for wellsite and road base paving, achieving waste utilization.

Economic Considerations of the WBM Drilling Cuttings Treatment System

Initial Investment: Compared to oil-based mud treatment systems, WBM systems typically have a more concise equipment configuration, which may offer an advantage in initial investment costs.

Operating Costs: Higher automation levels in the system can help reduce labor demands. By effectively recovering and reusing treated mud and clean water, the need to prepare new mud is significantly reduced. This economic benefit from water conservation is particularly evident in areas with limited water resources.

Final Disposal Costs: The mud cakes produced after system treatment generally have lower moisture content and reduced volume, which helps lower transportation and final landfill costs. In some cases, the treated mud cake can even be used for other purposes, such as road base material, further reducing waste disposal expenses and associated environmental risks.

System Equipment Configuration and Supplier Considerations

Understanding the basic equipment composition of the system and the supplier's experience is an important basis for decision-making:

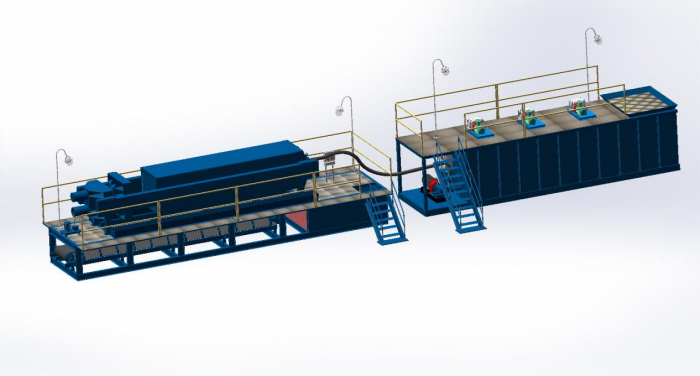

Main Equipment: A typical WBM zero discharge system usually includes core solids control equipment such as shale shakers, dewatering shakers, and filter presses, supplemented by mud tanks and conveying equipment, forming a complete treatment process. Equipment quality is critical for the system's long-term stable operation.

Supplier Experience: Choosing a supplier with rich industry experience ensures access to more professional system integration, installation, commissioning, as well as subsequent operational guidance and technical support.

Suitable Drilling Scenarios for WBM Drilling Cuttings Treatment System

Conventional and Shallow Wells: For conventional and shallow drilling where formation pressure and temperature are relatively stable, WBM performance is sufficient, and the zero discharge system can effectively reduce environmental costs.

Environmentally Sensitive Areas: In regions with strict environmental regulations and high environmental sensitivity, such as water sources, farmland, and densely populated areas, the WBM zero discharge system is the preferred solution for meeting compliance requirements.

Water-Scarce Regions: The system's ability to efficiently recover and recycle treated water significantly reduces the consumption of fresh water resources, making it particularly suitable for drilling operations in water-deficient areas.

Scenarios Requiring Utilization of Treated Solids: If the treated mud cake cuttings can be used for wellsite leveling, road base paving, or building materials, additional economic and environmental benefits will be generated.

The WBM Drilling Cuttings Treatment System satisfies environmental requirements while also bringing potential benefits in terms of economy and efficiency. When considering investment, a comprehensive evaluation of the system's economics, technical performance, environmental compliance, supplier service capabilities, and applicable drilling scenarios will help in making a decision that meets project needs.
